Wireless HMI


Mobile operating panel with integrated safety

Operating freedom, WLAN data exchange and integrated Safety functions ... with the HGW 1033 wireless operating panel, all these features are cleverly combined. And: Thanks to OPC UA, the wireless operating panel is open for all systems. The HMI, which provides maximum operating freedom, can also be later integrated into existing machines and systems. With the battery pack, which has a run time capacity of two hours in full operating mode, the wireless HMI weighs only 1,350 grams.
  • HGW 1033, den trådlösa operatörspanelen med integrerat nödstopp sätter en helt ny standard inom mobila operatörspaneler
  • Tack vare Ethernet och OPC UA integreras panelen enkelt i befintliga anläggningar från tredje-parts tillverkare

Free movement without cables

To date, the range of motion for mobile machine operation has been limited by two factors: the cable length and the safety required for people and machines in harsh industrial environments. With the wireless HGW 1033, the operator can now work close to the machine and keep the process in view and under control. Thanks to the wireless technology, long HMI cables have been eliminated as trip hazards.
  • Den tidigare begränsningen i den mobila operatörspanelens kabel är nu ett minne blott
  • Med den trådlösa operatörspanelen med integrerat nödstopp kan operatören närma sig sin maskin och process med en helt nyfrihet och flexibilitet

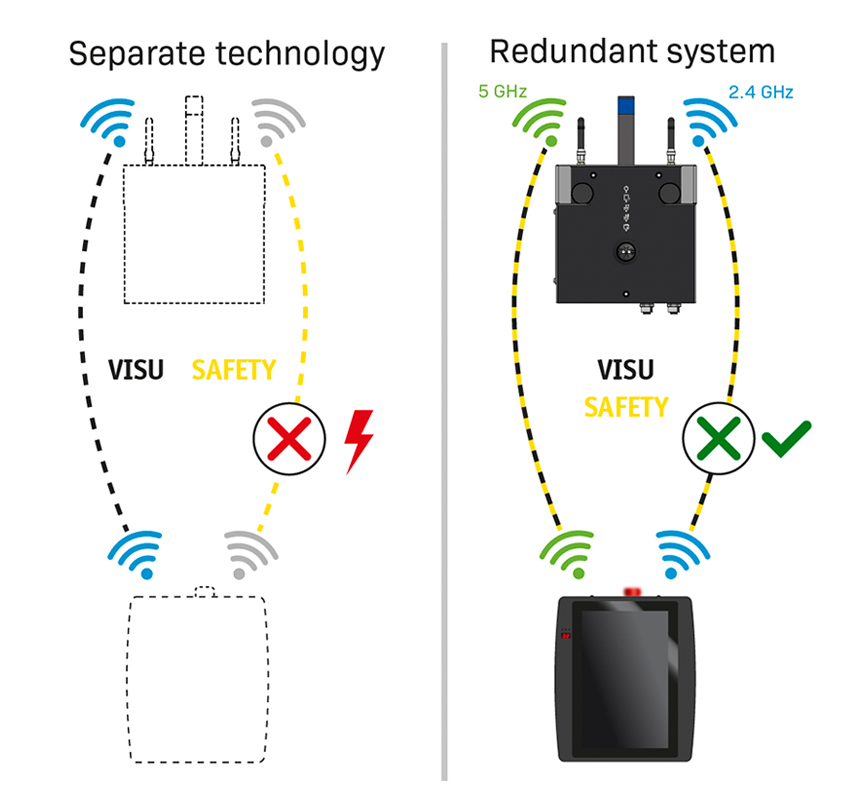

WLAN instead of cables

For wireless communication in industrial environments, a fully developed concept is required. With the HGW 1033, data is transferred redundantly using WLAN technology via two separate frequency bands with 2.4 and 5.0 GHz.
  • För en ökad redundans överförs data både över 2,4 GHz och 5.0 GHz banden

Safety elements integrated

The operator always has all Safety functions “in hand” with the HGW 1033-3 and can wirelessly initiate the desired action. A confirmation switch, key switch and an active-illuminated emergency stop switch are provided. The fully-developed Safety concept of the wireless operating panel is TÜV-certified and with SIL 3 and PL e, meets the highest requirements. Safety-related data is exchanged via the standard WLAN network using the Black Channel principle.
  • TÜV-certifierad säkerhetslösning, SIL3 och PLe
  • Säkerhetsrelevant data kommuniceras över Standard WLAN genom Black-Channel principen

Open for all systems and applications

Through standard interfaces and protocols such as Ethernet and OPC UA, wireless operating solutions can even communicate with controls of other manufacturers, ERP and cloud applications.
  • Via Ethernet och OPC UA integreras panelen enkelt till styrningar från tredje-part, ERP och molntjänster

One panel for multiple machines

In addition to the elimination of the cable for mobile operation, a further core benefit of the handheld panel is that not every machine needs an operating panel. In production halls for example, multiple robots from the same manufacturer are often used. Here one HGW is in principle, enough for all.
  • En panel kan serva flera maskiner. Operatören som övervakar en hel maskinpark kan använda samma panel till alla robotar och maskiner

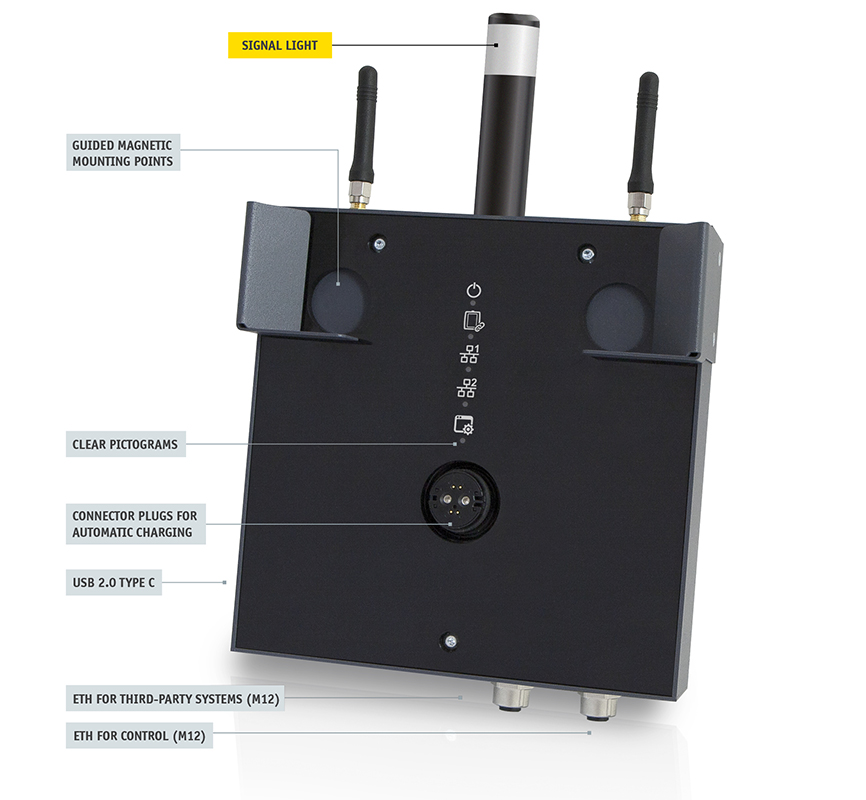

Base station: simply dock on

BWH, basstationen, som levereras tillsammans med operatörspanel

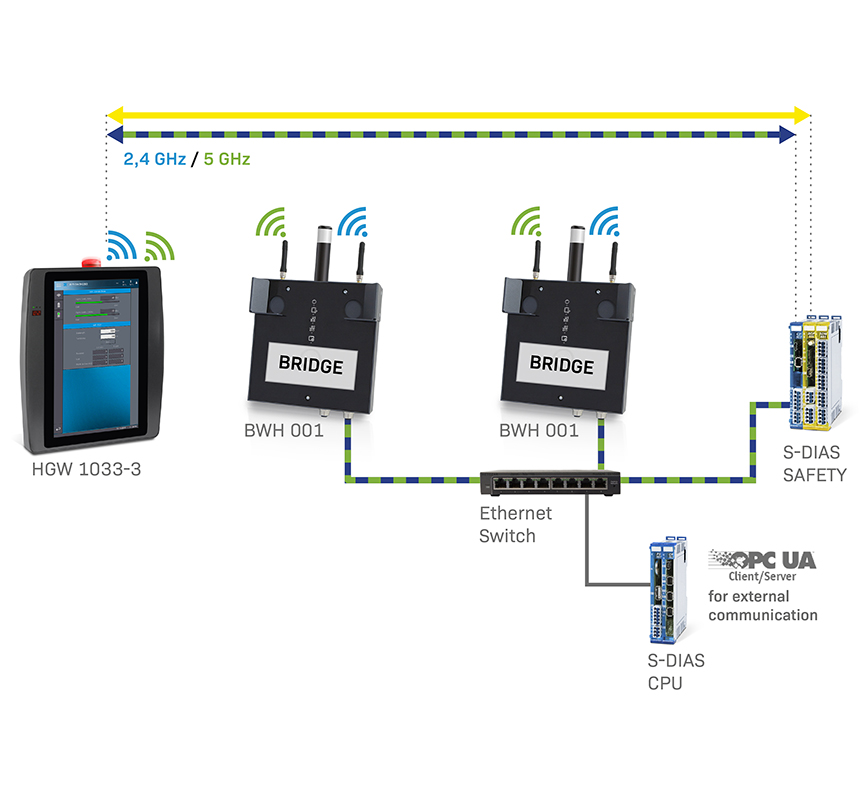

The BWH 001, which serves as the gateway with docking and charging function, was developed especially for the WLAN operating panel. In addition to the wireless-link to the HGW, two Ethernet interfaces are provided for flexible integration into the total system. The mobile HMI transfers data directly to the BWH 001 base station over a “peer-to-peer” connection, which provides communications with the S-DIAS Safety control from SIGMATEK. If the operator does not need the HGW 1033, it can be placed in the base station and battery charging starts automatically. The base station BWH 001, with a wireless connection to the mobile HMI, was developed for the HGW 1033. The redundant data transmission on separate frequency bands (2.4 and 5 GHz) increases network availability.
  • Signaltorn
  • Magnetfäste för panelhållare
  • Tydliga symboler
  • Kontakt för automatisk laddning
  • USB 2.0 Type C
  • Ethernet för tredje-parts system (M12)
  • Ethernet för styrning (M12)

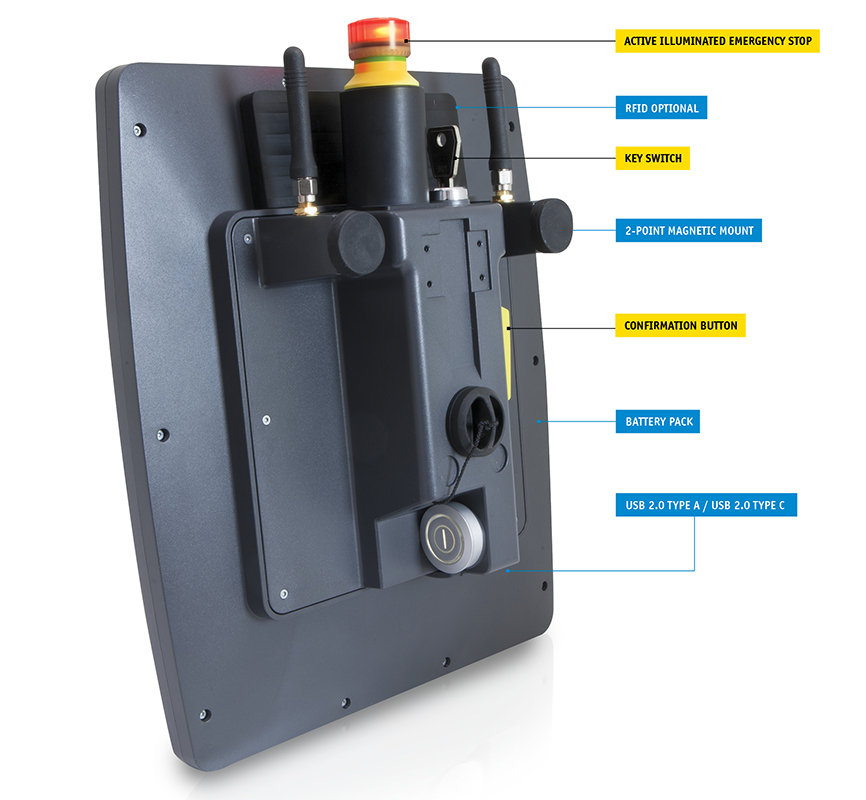

Operatingpanel

Baksidan över knappar, funktioner och element till operatörens förfogande
In addition to safety elements, the handle unit of the HGW 1033 also has a magnetic base. The mobile panel can therefore be easily placed on a machine component without a mount - a practical feature.
  • Aktiv upplyst nödstoppsknapp
  • RFID-tillval
  • Nyckelvred
  • 2-punkters magnetfäste
  • Hålldon
  • Batteri
  • USB 2.0 Type A / USB 2.0 Type C

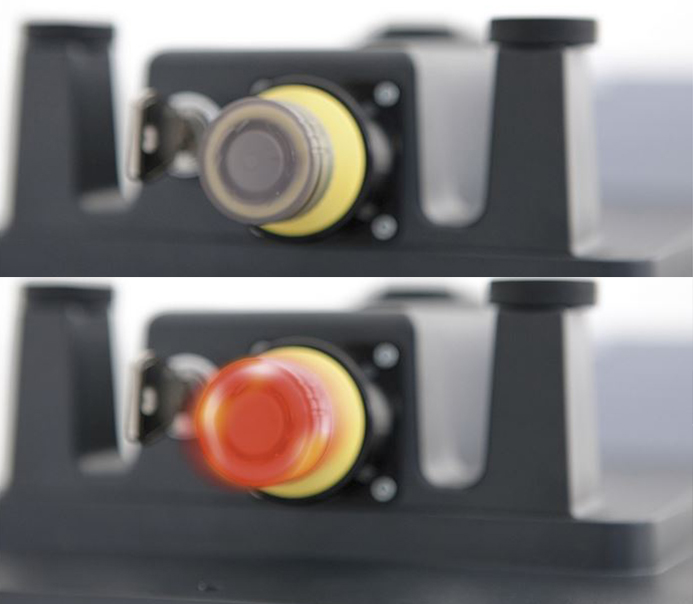

Safety to go

nödstoppsknapp upplyst släkt
Släkt/upplyst nödstoppsknapp
Safety to go: The HGW 1033 has an active illuminated emergency stop, key switch and confirmation button (SIL 3, PL e). When the emergency stop button lights red, the HMI clearly indicates that the Safety function is available and the Safety system is connected correctly.
  • Upplyst nödstoppsknapp markerar att säkerhetssystemet är aktivt

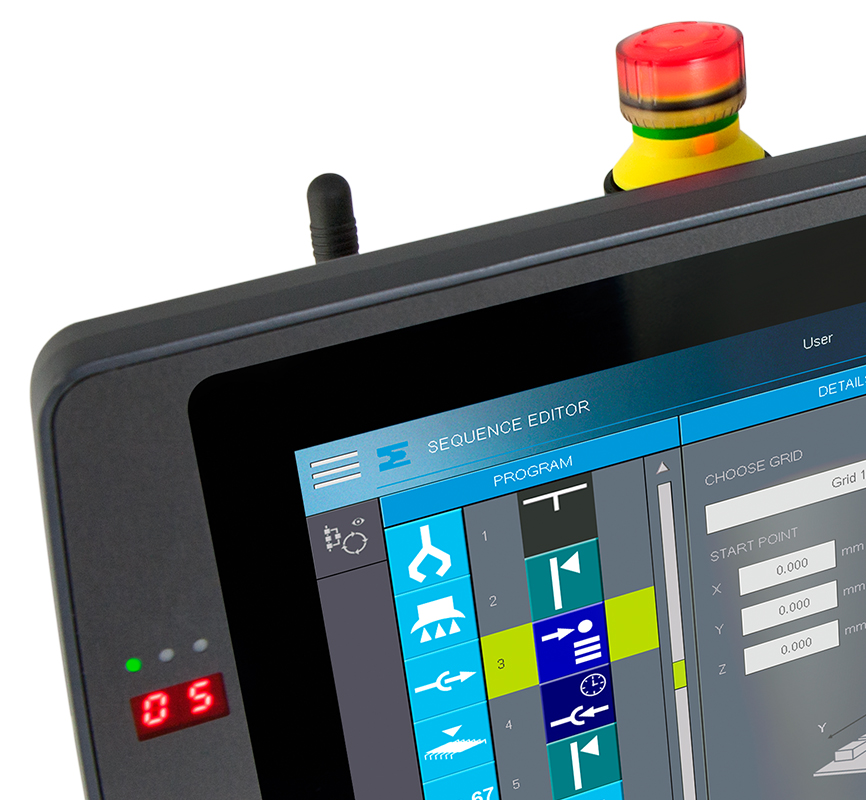

Connect to several machines

segment display
On the 7-segment display of the HGW 1033, with which machine the wireless panel is connected can always be seen. When needed, elements such as an RFID reader or rotary encoders can also be integrated.
  • Genom sin 7-segment display indikeras vilken maskin operatörspanelen är uppkopplad mot
  • Finns även med rotary encoders och RFID
